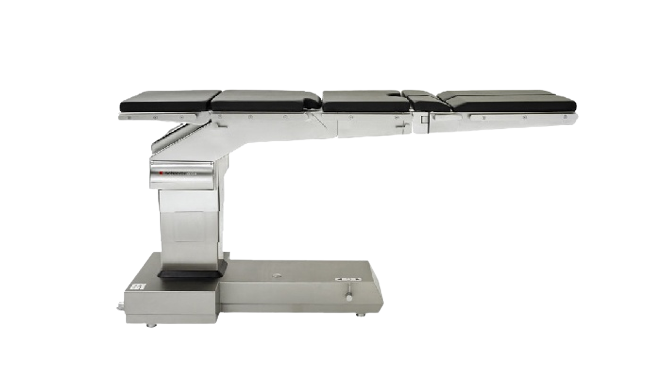

The universal table with one electro-hydraulically driven table top axis for the seat plate. Removable, two-part seat plate bars for fitting orthopedic accessories in the basic or reverse position (beach chair). Manually adjustable head and leg plates supported by gas pressure springs. Universal for all accessories, including extension devices and the Schaerer® MIS-Extension. X-ray transparency 1450 – 1830 mm (with intermediate plate).

Features includes:

• Table top outside of the column / thereof X-ray transparent with intermediate plate*/ thereof X-ray transparent: 1600/ 1450: 1980/ 1830: 63.0/ 57.1: 78.0/ 72.0
• Weight without head and leg plates: 284/ 625
• Length without head and leg plates: 865 / 34.1
• Length with head and leg plates: 1997 / 78.6
• Width of table top: 520 / 20.5
• Total width (with side rails): 580 / 22.8
• Maximum patient weight (dynamic all positions): 220 / 484
• Column range of motion: 734 – 1140 / 28.9 – 44.9
• Trendelenburg / reverse Trendelenburg: 28 / 28
• Lateral tilting right/left: 18
• Seat plate up: 76
• Seat plate down: 40
• Motorised leg plate up (basis position): 0
• Motorised leg plate down (basis position): 0
