Multifunctional Test Instrument

All safety relevant, characteristic electrical values can be measured and documented for portable and stationary medical devices with the menu-driven SECULIFE | ST. And you even have the choice between fully automated or manual test sequences.

The SECULIFE | ST detects mains supply power, protection class and mains connection errors at the device under test. The test sequence is significantly simplified by the automatic mode.

• Select a regulation.
• Press the start key.
• Read the results.

Complete function tests can be also conducted with mains power on large, high-power devices with the integrated test socket.

The SECULIFE | ST is equipped with an operator safety switch.

The SECULIFE | ST is the only measuring instrument available on the market which has been designed to test medical devices operated with 3-phase electrical current. AT3-IIIE and AT3-IIS 3-phase current adapters can be furnished to this end as optional accessories.

Possible areas of use and measurements performed with the SECULIFE | ST are expanded with numerous multimeter functions. The performance of individually configured single measurements is thus made possible.

As a standard feature, the SECULIFE | ST is equipped with an RS 232 port for transferring measurement and test reports to a PC or a printer.

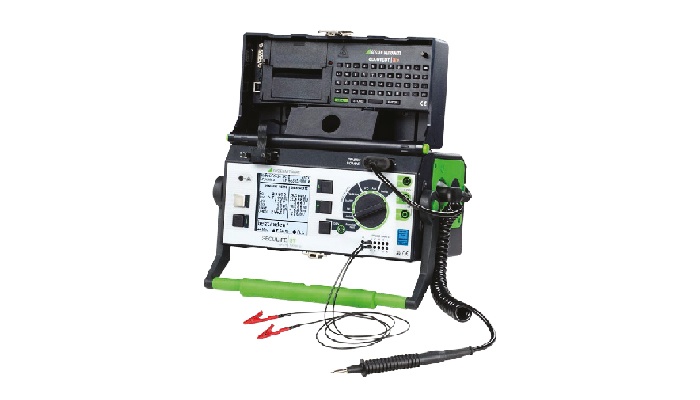

The instrument can be optionally expanded to include a printer-memory-interface with GOSSEN METRAWATT’s external (P)Si module. The SECULIFE | ST is compatible with PS 3, visualFM, Fundamed, MD Data, PC doc Word/Excel, PC doc Access and other software.
