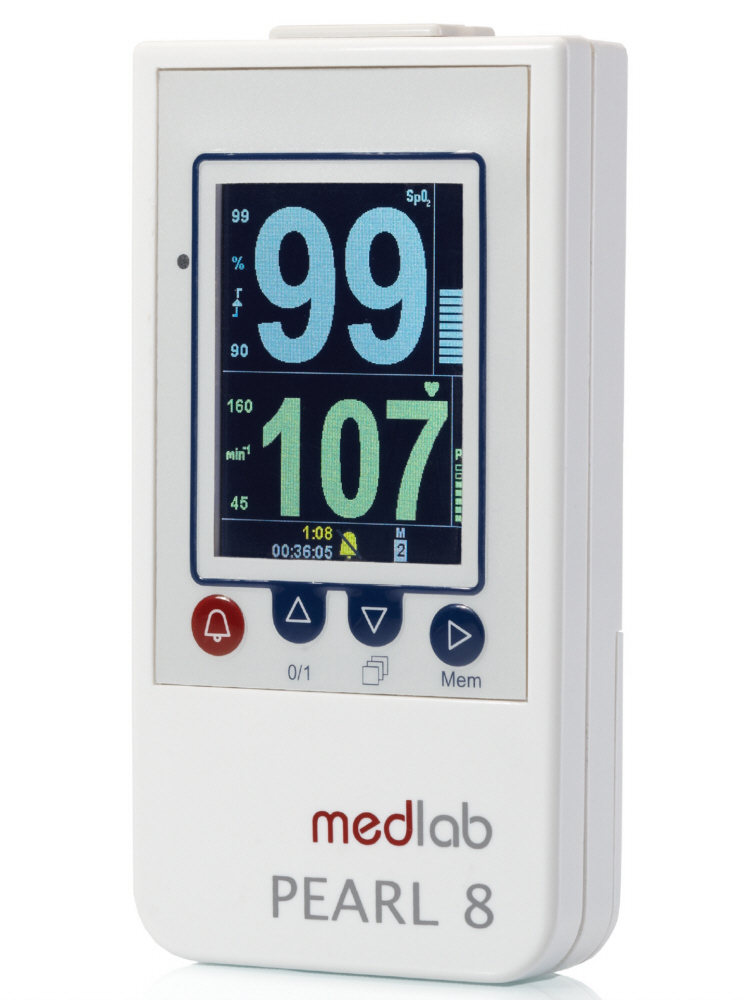

The PEARL8 Pulse Oximeter with its new digital signal processing technology works reliably and can be used from infant to adult. It features a bright, crisp TFT display which is easily readable. With its integrated alarms the device allows for monitoring a patient. The standard display can be set to three different modes: large numerical, numerical-waveform and numerical-trend

Features:

• Reliable measurement of SpO2 and pulse rate
• High quality and brilliant contrast TFT screen
• Can be used on adults, children and infants
• Trend and waveform display on TFT screen
• Adjustable alarm limits, visible and audible alarms
• Saturation dependent pulse tone with adjustable volume
• Infrared interface for thermal printer
• Pulse Oximeter
• SpO2 `
• Measurement Range 0-100% SpO2
• Averaging SpO2 Strong, Normal, Low (20, 10, 5 seconds)
• Display Range 0-99% SpO2
• Accuracy No Artefacts, No Perfusion +/- 2% (70-100%)
• Movement Artefacts +/- 3% (70-100%)
• (Not Specified below 70%)
• Pulse Rate
• Measuring Range 30-250 min^-1
• Accuracy +/- 3 min^-1
• Alarms Adjustable alarms for SpO2 and Pulse Rate
• Low Battery, Probe Disconnected
• Dimension 122 x 65 x 22 mm
• Weight Approx. 140 g
• Operating Temperature -20 – 45 °C
• Storage Temperature -25-65 °C
• Power Supply Two 1.5 V AA batteries (IEC LR06)
• Battery Life Approx. 22 h (at 60% TFT Brightnees)
• Power Consumption 350 mW with Full Backlight
• Display 62 mm TFT Screen
• Brightness 20-100% Auto Mode Available
• Memory 55 h internally (110h order nr 02810)
• Memory Resolution One data sample pair every 6 sec
• Interface IR Printer Interface
